clear all;clc;close all
cd("D:\桌面\毕设\材料\20221127-结题材料\03-源代码\03 - 井筒温度（更新新的）")
tic;
delta_t=3600; % 时间步长，s
timesteps=100; % 循环次数，即总模拟时间为delta_t×timesteps
welldepth=4005; % 井深，m
dz=41; % 以dz为主要的网格单元长度，m
casing_number=3; % 套管层数（即表层、技术和生产套管层数，不包括尾管）
Depth_weiguan=2505; % 尾管悬挂深度，m
% weiguan=0; % 不存在尾管，则环空温度只有一个径向层
weiguan=1; % 存在尾管，则需将环空温度场分为三个径向层
Rheology_type=1; % 1为牛顿流体，2为幂律流体，3为宾汉流体，4为赫巴流体
% Rheology_type=2; % 1为牛顿流体，2为幂律流体，3为宾汉流体，4为赫巴流体
% Rheology_type=3; % 1为牛顿流体，2为幂律流体，3为宾汉流体，4为赫巴流体
% Rheology_type=4; % 1为牛顿流体，2为幂律流体，3为宾汉流体，4为赫巴流体
%% 井身结构处理及网格划分
nobox_r=200; % 径向网格单元数
for i=1:casing_number % 套管序号，序号从内向外增加，即casing_number=1为生产套管
Depth_casing(i)=welldepth-4000/4*i+5; % 套管下深，m
if i==casing_number % 最外层套管（表层套管）
Depth_fluid(i)=0; % 表层套管水泥返深，m（一般返至地面）
else
Depth_fluid(i)=Depth_casing(i)-195; % 非表层套管水泥返深，m（一般返至密封点以上50~200米）
end
end
%% 是否存在尾管，存在尾管和不存在尾管的系数矩阵计算差别很大，因此使用不同的模型
if weiguan==0
section_number=casing_number+1; % 井段数=套管层数+1，沿井深分段，每一段以dz为主要网格单元长度划分网格，序号从井底向井口增加
if casing_number==0 % 如果套管层数=0，即裸眼井，则井段数为1
section_length1(1)=welldepth; % 这一井段的段长为井深，m
else
for i=1:section_number
if i==1
section_length1(i)=welldepth-Depth_casing(i);
elseif i==section_number
section_length1(i)=Depth_casing(i-1);
else
section_length1(i)=Depth_casing(i-1)-Depth_casing(i);
end
end
end
else
section_number=casing_number+2; % 井段数=套管层数+2，沿井深分段，每一段以dz为主要网格单元长度划分网格，序号从井底向井口增加
if casing_number==0
fprintf('尾管存在的时候必须存在套管，即套管数>=1')
elseif casing_number==1
section_length1(1)=welldepth-Depth_casing(1);
section_length1(2)=Depth_casing(1)-Depth_weiguan;
section_length1(3)=Depth_weiguan;
elseif casing_number==2
section_length1(1)=welldepth-Depth_casing(1);
section_length1(2)=Depth_casing(1)-Depth_weiguan;
section_length1(3)=Depth_weiguan-Depth_casing(2);
section_length1(4)=Depth_casing(2);
else
for i=1:section_number
if i==1
section_length1(1)=welldepth-Depth_casing(1);
elseif i==2
section_length1(2)=Depth_casing(1)-Depth_weiguan;
elseif i==3
section_length1(3)=Depth_weiguan-Depth_casing(2);
elseif i==section_number
section_length1(i)=Depth_casing(i-2);
else
section_length1(i)=Depth_casing(i-2)-Depth_casing(i-1);
end
end
end
end
section_length1(find(section_length1==0))=[]; % 去除向量中的0元素，对于段长为0的不能作为一段划分网格
section_length=section_length1(end:-1:1); % 将段长向量逆序，即序号从井口向井底增加
section_number=length(section_length); % 由于可能去除了向量中的0元素，需重新计算段长数
for i=1:section_number
n(i)=floor(section_length(i)/dz); % 计算每一段中被dz整除数
m(i)=mod(section_length(i),dz); % 计算每一段中被dz整除后的余数
end
delta_z=[]; % 总的网格单元长度向量
for i=1:section_number
int1=[]; % 各段的网格单元长度向量
int1(1:n(i))=dz; % 该段n(i)个dz整除项
if m(i)==0
int1=int1; % 如果余数为0，则表明被整除，则余数的0不被计入到网格单元长度向量
else
int1=[int1,m(i)]; % 如果余数不为0，则表明没被整除，则余数计入到网格单元长度向量
end
delta_z=[delta_z,int1]; % 将这一段的网格单元长度向量与上一段的网格单元长度拼接在一起
end
nobox_z=length(delta_z)+1; % 网格边界数=网格数+1
Depth=zeros(nobox_z,1); % 井深向量，m
Depth(1)=0; % 井口深度，m
for i=2:nobox_z
Depth(i)=Depth(i-1)+delta_z(i-1);
end
Weiguan_i=find(Depth==Depth_weiguan); % 判断尾管对应的节点数
%% 网格参数赋值
[rou_m,Cpm,lambdam]=deal(1750,1600,1.75); % 钻井液的密度（kg/m^3）、比热容（J/(kg·℃））、导热系数（W/(m·℃））
[rou_s,Cps,lambdas]=deal(8000,400,43.75); % 钢材（钻杆或套管）的密度（kg/m^3）、比热容（J/(kg·℃））、导热系数（W/(m·℃））
[rou_f,Cpf,lambdaf]=deal(2640,800,2.25); % 地层的密度（kg/m^3）、比热容（J/(kg·℃））、导热系数（W/(m·℃））
[rou_c,Cpc,lambdac]=deal(2140,2000,0.7); % 水泥的密度（kg/m^3）、比热容（J/(kg·℃））、导热系数（W/(m·℃））
Tm0=20; % 钻井液注入温度，℃
Tf0=15; % 地表温度，℃
Tfg=0.0223; % 地温梯度，℃/m
r=zeros(nobox_z,nobox_r+1); % 半径矩阵（沿井深和径向两个方向）
if weiguan==0 % 不存在尾管
r(:,1)=0.0943/2; % 钻杆内壁半径，m
r(:,2)=0.1143/2; % 钻杆外壁半径，m
r(:,3)=0.1651/2; % 井筒内壁半径，m
r(:,4)=0.1851/2; % 径向第4层外壁半径，m
r(:,5)=0.2051/2; % 径向第5层外壁半径，m
r(:,6)=0.2251/2; % 径向第6层外壁半径，m
r(:,7)=0.2451/2; % 径向第7层外壁半径，m
r(:,8)=0.2651/2; % 径向第8层外壁半径，m
r(:,9)=0.2851/2; % 径向第9层外壁半径，m
for i=10:nobox_r+1
delta_r(:,i)=0.02; % 径向第i层与第i-1层之间的半径差，m
r(:,i)=r(:,i-1)+delta_r(:,i); % 径向第i层外壁半径，m
end
A_annulus=pi*(r(:,3).^2-r(:,2).^2); % 环空内截面积，m^2
else % 存在尾管
r(:,1)=0.0943/2; % 钻杆内壁半径，m
r(:,2)=0.1143/2; % 钻杆外壁半径，m
r(:,3)=0.1451/2; % 尾管内壁半径，m
r(:,4)=0.1551/2; % 尾管水泥环内壁半径，m
r(:,5)=0.1651/2; % 环空半径，m
r(:,6)=0.1851/2; % 油层套管外壁半径，m
r(:,7)=0.2051/2; % 技术套管内壁半径，m
r(:,8)=0.2251/2; % 技术套管外壁半径，m
r(:,9)=0.2451/2; % 表层套管内壁半径，m
r(:,10)=0.2651/2; % 表层套管外壁半径，m
r(:,11)=0.2851/2; % 表层水泥环外壁半径，m
for i=12:nobox_r+1
delta_r(:,i)=0.02; % 径向第i层与第i-1层之间的半径差，m
r(:,i)=r(:,i-1)+delta_r(:,i); % 径向第i层外壁半径，m
end
A_annulus=zeros(nobox_z,1); % 计算环空内截面积，m^2
for j=1:nobox_z
if Depth(j)<Depth_weiguan
A_annulus(j)=pi*(r(j,5)^2-r(j,2)^2);
else
A_annulus(j)=pi*(r(j,3)^2-r(j,2)^2);
end
end
end
A_drillpipe=pi*r(:,1).^2; % 计算钻杆内截面积，m^2
q=0.55/60; % 钻井液排量，m^3/s
V_drillpipe=q./A_drillpipe; % 钻杆内钻井液流速，m/s
V_annulus=q./A_annulus; % 环空内钻井液流速，m/s
if Rheology_type==1
miu_m=0.07; % 钻井液黏度，Pa·s
miu_drillpipe(1:nobox_z,1)=miu_m; % 钻杆内钻井液黏度，Pa·s
miu_annulus(1:nobox_z,1)=miu_m; % 环空内钻井液黏度，Pa·s
elseif Rheology_type==2
K_power=0.8; % 幂律流体稠度系数,Pa·s^n
n_power=0.6; % 幂律流体流性指数
K_drillpipe(1:nobox_z,1)=K_power;
n_drillpipe(1:nobox_z,1)=n_power;
miu_drillpipe(1:nobox_z,1)=1/2*1022^n_power*K_power/0.511/1000;
miu_annulus=miu_drillpipe;
elseif Rheology_type==3
tao_y=7.1; % 宾汉流体屈服应力，Pa
mu_p=0.02; % 宾汉流体塑性黏度，Pa·s
miu_drillpipe(1:nobox_z,1)=mu_p; % 钻杆内钻井液黏度，Pa·s
miu_annulus(1:nobox_z,1)=mu_p; % 环空内钻井液黏度，Pa·s
elseif Rheology_type==4
tao_y=4.6; % 赫巴流体屈服应力，Pa
K_hb=0.34; % 赫巴流体稠度系数,Pa·s^n
n_hb=0.63; % 赫巴流体流性指数
K_drillpipe(1:nobox_z,1)=K_hb;
n_drillpipe(1:nobox_z,1)=n_hb;
miu_drillpipe(1:nobox_z,1)=1/2*1022^n_hb*K_hb/0.511/1000;
miu_annulus=miu_drillpipe;
end
Rho=zeros(nobox_z,nobox_r); % 密度矩阵（沿井深和径向方向）
Cp=zeros(nobox_z,nobox_r); % 比热容矩阵（沿井深和径向方向）
lambda=zeros(nobox_z,nobox_r+1); % 导热系数矩阵（沿井深和径向方向）
Rho(:,1)=rou_m; % 第一层的密度
Cp(:,1)=Cpm; % 第一层的比热容
lambda(:,1)=lambdam; % 第一层的导热系数
Rho(:,2)=rou_s; % 第二层的密度
Cp(:,2)=Cps; % 第二层的比热容
lambda(:,2)=lambdas; % 第二层的导热系数
Rho(:,3)=rou_m; % 第三层的密度
Cp(:,3)=Cpm; % 第三层的比热容
lambda(:,3)=lambdam; % 第三层的导热系数
lambda(:,nobox_r+1)=lambdaf; % 在计算最后一层地层的温度时，需要用到nobox_r+1的导热系数
if weiguan==0 % 不存在尾管
if casing_number==0 % 裸眼井，则第4层及之后的层数均为地层
Rho(:,4:nobox_r)=rou_f; % 4层及之后的地层密度
Cp(:,4:nobox_r)=Cpf; % 4层及之后的地层比热容
lambda(:,4:nobox_r)=lambdaf; % 4层及之后的地层导热系数
else
for i=1:casing_number
for j=1:nobox_z
if Depth(j)<Depth_casing(i) % 小于套管下深，则赋值为套管参数
Rho(j,3+2*i-1)=rou_s; % 密度
Cp(j,3+2*i-1)=Cps; % 比热容
lambda(j,3+2*i-1)=lambdas; % 导热系数
elseif Depth(j)>=Depth_casing(i) & Depth(j)<=welldepth % 大于套管下深，则赋值为地层参数
Rho(j,3+2*i-1)=rou_f; % 密度
Cp(j,3+2*i-1)=Cpf; % 比热容
lambda(j,3+2*i-1)=lambdaf; % 导热系数
end
if Depth(j)<Depth_fluid(i) % 小于水泥环返深，则赋值为钻井液参数
Rho(j,3+2*i)=rou_m; % 密度
Cp(j,3+2*i)=Cpm; % 比热容
lambda(j,3+2*i)=lambdam; % 导热系数
elseif Depth(j)>=Depth_fluid(i) & Depth(j)<Depth_casing(i) % 大于水泥返深且小于套管下深，则赋值为水泥参数
Rho(j,3+2*i)=rou_c; % 密度
Cp(j,3+2*i)=Cpc; % 比热容
lambda(j,3+2*i)=lambdac; % 导热系数
elseif Depth(j)>=Depth_casing(i) & Depth(j)<=welldepth % 大于套管下深，则赋值为地层参数
Rho(j,3+2*i)=rou_f; % 密度
Cp(j,3+2*i)=Cpf; % 比热容
lambda(j,3+2*i)=lambdaf; % 导热系数
end
end
end
end
for i=3+2*casing_number+1:nobox_r % 除去套管和水泥，剩余的径向层全部赋值为地层参数
for j=1:nobox_z
Rho(j,i)=rou_f; % 密度
Cp(j,i)=Cpf; % 比热容
lambda(j,i)=lambdaf; % 导热系数
end
end
if Rheology_type==1
Re_drillpipe=Rho(:,1).*V_drillpipe.*(2*r(:,1))./miu_m; % 钻杆内雷诺数
Re_annulus=Rho(:,3).*V_annulus.*(2*(r(:,3)-r(:,2)))/miu_m; % 环空内雷诺数
h_drillpipe=0.027.*lambda(:,1).*Re_drillpipe.^0.8.*(miu_drillpipe.*Cp(:,1)./lambda(:,1)).^0.4./(2*r(:,1))/5; % 钻井液与钻杆内壁对流换热系数，W/(m^2·℃）
h_annulus=0.027*lambda(:,3).*Re_annulus.^0.8.*(miu_drillpipe.*Cp(:,3)./lambda(:,3)).^0.4./(2*(r(:,3)-r(:,2)))/5; % 钻井液与钻杆外壁对流换热系数，W/(m^2·℃）
h1=h_drillpipe; % 钻井液与钻杆内壁对流换热系数，W/(m^2·℃）
h2=h_annulus; % 钻井液与钻杆外壁对流换热系数，W/(m^2·℃）
h3=h_annulus; % 钻井液与井筒内壁对流换热系数，W/(m^2·℃）
elseif Rheology_type==2
Re_drillpipe=Rho(:,1).*V_drillpipe.^(2-n_power).*(2*r(:,1)).^n_power./(8^(n_power-1).*K_power.*((1+3*n_power)./(4*n_power)).^n_power); % 钻杆内雷诺数
delta_correct=(3*n_power+1)/(4*n_power);
h_drillpipe=0.091*Re_drillpipe.^0.87.*(miu_drillpipe.*Cp(:,1)./lambda(:,1)).^(1/3)*delta_correct./(2*r(:,1))/5;
Re_annulus=zeros(nobox_z,1);
h_annulus=zeros(nobox_z,1);
for j=1:nobox_z
if Depth(j)<Depth_weiguan
Re_annulus(j)=Rho(j,3)*V_annulus(j)^(2-n_power)*(2*(r(j,5)-r(j,2)))^n_power/(8^(n_power-1)*K_power*((1+3*n_power)/(4*n_power))^n_power); % 环空内雷诺数
h_annulus(j)=0.091*Re_annulus(j)^0.87*(miu_annulus(j)*Cp(j,3)./lambda(j,3))^(1/3)*delta_correct/(2*(r(j,5)-r(j,2)))/5; % 钻井液与钻杆外壁对流换热系数，W/(m^2·℃）
else
Re_annulus(j)=Rho(j,3)*V_annulus(j)^(2-n_power)*(2*(r(j,3)-r(j,2)))^n_power/(8^(n_power-1)*K_power*((1+3*n_power)/(4*n_power))^n_power); % 环空内雷诺数
h_annulus(j)=0.091*Re_annulus(j)^0.87*(miu_annulus(j)*Cp(j,3)./lambda(j,3))^(1/3)*delta_correct/(2*(r(j,3)-r(j,2)))/5; % 钻井液与钻杆外壁对流换热系数，W/(m^2·℃）
end
end
elseif Rheology_type==3
Re_drillpipe=Rho(:,1).*V_drillpipe.*(2*r(:,1))./mu_p; % 钻杆内雷诺数
Re_annulus=Rho(:,3).*V_annulus.*(2*(r(:,3)-r(:,2)))/mu_p; % 环空内雷诺数
h_drillpipe=0.027.*lambda(:,1).*Re_drillpipe.^0.8.*(miu_drillpipe.*Cp(:,1)./lambda(:,1)).^0.4./(2*r(:,1))/5; % 钻井液与钻杆内壁对流换热系数，W/(m^2·℃）
h_annulus=0.027*lambda(:,3).*Re_annulus.^0.8.*(miu_drillpipe.*Cp(:,3)./lambda(:,3)).^0.4./(2*(r(:,3)-r(:,2)))/5; % 钻井液与钻杆外壁对流换热系数，W/(m^2·℃）
h1=h_drillpipe; % 钻井液与钻杆内壁对流换热系数，W/(m^2·℃）
h2=h_annulus; % 钻井液与钻杆外壁对流换热系数，W/(m^2·℃）
h3=h_annulus;
elseif Rheology_type==4
Re_drillpipe=Rho(:,1).*V_drillpipe.^(2-n_hb).*(2*r(:,1)).^n_hb./(8^(n_power-1).*K_hb.*((1+3*n_hb)./(4*n_hb)).^n_hb); % 钻杆内雷诺数
delta_correct=(3*n_hb+1)/(4*n_hb);
h_drillpipe=0.091*Re_drillpipe.^0.87.*(miu_drillpipe.*Cp(:,1)./lambda(:,1)).^(1/3)*delta_correct./(2*r(:,1))/5;
Re_annulus=zeros(nobox_z,1);
h_annulus=zeros(nobox_z,1);
for j=1:nobox_z
if Depth(j)<Depth_weiguan
Re_annulus(j)=Rho(j,3)*V_annulus(j)^(2-n_hb)*(2*(r(j,5)-r(j,2)))^n_hb/(8^(n_hb-1)*K_hb*((1+3*n_hb)/(4*n_hb))^n_hb); % 环空内雷诺数
h_annulus(j)=0.091*Re_annulus(j)^0.87*(miu_annulus(j)*Cp(j,3)./lambda(j,3))^(1/3)*delta_correct/(2*(r(j,5)-r(j,2)))/5; % 钻井液与钻杆外壁对流换热系数，W/(m^2·℃）
else
Re_annulus(j)=Rho(j,3)*V_annulus(j)^(2-n_hb)*(2*(r(j,3)-r(j,2)))^n_hb/(8^(n_hb-1)*K_hb*((1+3*n_hb)/(4*n_hb))^n_hb); % 环空内雷诺数
h_annulus(j)=0.091*Re_annulus(j)^0.87*(miu_annulus(j)*Cp(j,3)./lambda(j,3))^(1/3)*delta_correct/(2*(r(j,3)-r(j,2)))/5; % 钻井液与钻杆外壁对流换热系数，W/(m^2·℃）
end
end
end
h1=h_drillpipe; % 钻井液与钻杆内壁对流换热系数，W/(m^2·℃）
h2=h_annulus; % 钻井液与钻杆外壁对流换热系数，W/(m^2·℃）
h3=h_annulus; % 钻井液与井筒内壁对流换热系数，W/(m^2·℃）
%% 系数矩阵计算
A=zeros(nobox_z,nobox_r); % 系数矩阵A
B=zeros(nobox_z,nobox_r); % 系数矩阵B
C=zeros(nobox_z,nobox_r); % 系数矩阵C
D=zeros(nobox_z,nobox_r); % 系数矩阵D
E=zeros(nobox_z,nobox_r); % 系数矩阵E
F=zeros(nobox_z,nobox_r); % 系数矩阵F
for j=1:nobox_z
if j==1 % 井口网格系数的计算
A(j,1)=-Rho(j,1)*q*Cp(j,1)/delta_z(j)-2*pi*r(j,1)*h1(j,1)-Rho(j,1)*Cp(j,1)*pi*r(j,1)^2/delta_t; % 计算钻杆内钻井液温度场大矩阵系数A
B(j,1)=Rho(j,1)*q*Cp(j,1)/delta_z(j); % 计算钻杆内钻井液温度场大矩阵系数B
C(j,1)=0; % 计算钻杆内钻井液温度场大矩阵系数C
D(j,1)=0; % 计算钻杆内钻井液温度场大矩阵系数D
E(j,1)=2*pi*r(j,1)*h1(j,1); % 计算钻杆内钻井液温度场大矩阵系数E
F(j,1)=-Rho(j,1)*Cp(j,1)*pi*r(j,1)^2/delta_t; % 计算钻杆内钻井液温度场大矩阵系数F
A(j,2)=-2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j)+delta_z(j))*delta_z(j))-2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j)+delta_z(j))*delta_z(j))-2*pi*r(j,1)*h1(j,1)-2*pi*r(j,2)*h2(j,1)-Rho(j,2)*Cp(j,2)*pi*(r(j,2)^2-r(j,1)^2)/delta_t; % 计算钻杆壁面温度场大矩阵系数A
B(j,2)=2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j)+delta_z(j))*delta_z(j)); % 计算钻杆壁面温度场大矩阵系数B
C(j,2)=2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j)+delta_z(j))*delta_z(j)); % 计算钻杆壁面温度场大矩阵系数C
D(j,2)=2*pi*r(j,1)*h1(j,1); % 计算钻杆壁面温度场大矩阵系数D
E(j,2)=2*pi*r(j,2)*h2(j,1); % 计算钻杆壁面温度场大矩阵系数E
F(j,2)=-Rho(j,2)*Cp(j,2)*pi*(r(j,2)^2-r(j,1)^2)/delta_t; % 计算钻杆壁面温度场大矩阵系数F
A(j,3)=-Rho(j,3)*q*Cp(j,3)/delta_z(j)-2*pi*r(j,2)*h2(j,1)-2*pi*r(j,3)*h3(j,1)-Rho(j,3)*Cp(j,3)*pi*(r(j,3)^2-r(j,2)^2)/delta_t; % 计算环空内钻井液温度场大矩阵系数A
B(j,3)=0; % 计算环空内钻井液温度场大矩阵系数B
C(j,3)=Rho(j,3)*q*Cp(j,3)/delta_z(j); % 计算环空内钻井液温度场大矩阵系数C
D(j,3)=2*pi*r(j,2)*h2(j,1); % 计算环空内钻井液温度场大矩阵系数D
E(j,3)=2*pi*r(j,3)*h3(j,1); % 计算环空内钻井液温度场大矩阵系数E
F(j,3)=-Rho(j,3)*Cp(j,3)*pi*(r(j,3)^2-r(j,2)^2)/delta_t; % 计算环空内钻井液温度场大矩阵系数F
A(j,4)=-2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j)+delta_z(j))*delta_z(j))-2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j)+delta_z(j))*delta_z(j))-2*pi*r(j,3)*h3(j,1)-pi*(r(j,4)^2-r(j,3)^2)*log(r(j,5)/r(j,3))/(r(j,4)*(r(j,4)-r(j,3))*log(r(j,5)/r(j,4))*(log(r(j,4)/r(j,3))/lambda(j,4)+log(r(j,5)/r(j,4))/lambda(j,5)))-Rho(j,4)*Cp(j,4)*pi*(r(j,4)^2-r(j,3)^2)/delta_t; % 计算第四层温度场大矩阵系数A
B(j,4)=2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j)+delta_z(j))*delta_z(j)); % 计算第四层温度场大矩阵系数B
C(j,4)=2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j)+delta_z(j))*delta_z(j)); % 计算第四层温度场大矩阵系数C
D(j,4)=2*pi*r(j,3)*h3(j,1); % 计算第四层温度场大矩阵系数D
E(j,4)=pi*(r(j,4)^2-r(j,3)^2)*log(r(j,5)/r(j,3))/(r(j,4)*(r(j,4)-r(j,3))*log(r(j,5)/r(j,4))*(log(r(j,4)/r(j,3))/lambda(j,4)+log(r(j,5)/r(j,4))/lambda(j,5))); % 计算第四层温度场大矩阵系数E
F(j,4)=-Rho(j,4)*Cp(j,4)*pi*(r(j,4)^2-r(j,3)^2)/delta_t; % 计算第四层温度场大矩阵系数F
else
A(j,1)=-Rho(j,1)*q*Cp(j,1)/delta_z(j-1)-2*pi*r(j,1)*h1(j,1)-Rho(j,1)*Cp(j,1)*pi*r(j,1)^2/delta_t; % 计算钻杆内钻井液温度场大矩阵系数A
B(j,1)=Rho(j,1)*q*Cp(j,1)/delta_z(j-1); % 计算钻杆内钻井液温度场大矩阵系数B
C(j,1)=0; % 计算钻杆内钻井液温度场大矩阵系数C
D(j,1)=0; % 计算钻杆内钻井液温度场大矩阵系数D
E(j,1)=2*pi*r(j,1)*h1(j,1); % 计算钻杆内钻井液温度场大矩阵系数E
F(j,1)=-Rho(j,1)*Cp(j,1)*pi*r(j,1)^2/delta_t; % 计算钻杆内钻井液温度场大矩阵系数F
if j==nobox_z % 井底网格系数的计算
A(j,2)=-2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1))-2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1))-2*pi*r(j,1)*h1(j,1)-2*pi*r(j,2)*h2(j,1)-Rho(j,2)*Cp(j,2)*pi*(r(j,2)^2-r(j,1)^2)/delta_t; % 计算钻杆壁面温度场大矩阵系数A
B(j,2)=2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1)); % 计算钻杆壁面温度场大矩阵系数B
C(j,2)=2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1)); % 计算钻杆壁面温度场大矩阵系数C
D(j,2)=2*pi*r(j,1)*h1(j,1); % 计算钻杆壁面温度场大矩阵系数D
E(j,2)=2*pi*r(j,2)*h2(j,1); % 计算钻杆壁面温度场大矩阵系数E
F(j,2)=-Rho(j,2)*Cp(j,2)*pi*(r(j,2)^2-r(j,1)^2)/delta_t; % 计算钻杆壁面温度场大矩阵系数F
A(j,3)=-Rho(j,3)*q*Cp(j,3)/delta_z(j-1)-2*pi*r(j,2)*h2(j,1)-2*pi*r(j,3)*h3(j,1)-Rho(j,3)*Cp(j,3)*pi*(r(j,3)^2-r(j,2)^2)/delta_t; % 计算环空内钻井液温度场大矩阵系数A
B(j,3)=0; % 计算环空内钻井液温度场大矩阵系数B
C(j,3)=Rho(j,3)*q*Cp(j,3)/delta_z(j-1); % 计算环空内钻井液温度场大矩阵系数C
D(j,3)=2*pi*r(j,2)*h2(j,1); % 计算环空内钻井液温度场大矩阵系数D
E(j,3)=2*pi*r(j,3)*h3(j,1); % 计算环空内钻井液温度场大矩阵系数E
F(j,3)=-Rho(j,3)*Cp(j,3)*pi*(r(j,3)^2-r(j,2)^2)/delta_t; % 计算环空内钻井液温度场大矩阵系数F
A(j,4)=-2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1))-2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1))-2*pi*r(j,3)*h3(j,1)-pi*(r(j,4)^2-r(j,3)^2)*log(r(j,5)/r(j,3))/(r(j,4)*(r(j,4)-r(j,3))*log(r(j,5)/r(j,4))*(log(r(j,4)/r(j,3))/lambda(j,4)+log(r(j,5)/r(j,4))/lambda(j,5)))-Rho(j,4)*Cp(j,4)*pi*(r(j,4)^2-r(j,3)^2)/delta_t; % 计算第四层温度场大矩阵系数A
B(j,4)=2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1)); % 计算第四层温度场大矩阵系数B
C(j,4)=2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1)); % 计算第四层温度场大矩阵系数C
D(j,4)=2*pi*r(j,3)*h3(j,1); % 计算第四层温度场大矩阵系数D
E(j,4)=pi*(r(j,4)^2-r(j,3)^2)*log(r(j,5)/r(j,3))/(r(j,4)*(r(j,4)-r(j,3))*log(r(j,5)/r(j,4))*(log(r(j,4)/r(j,3))/lambda(j,4)+log(r(j,5)/r(j,4))/lambda(j,5))); % 计算第四层温度场大矩阵系数E
F(j,4)=-Rho(j,4)*Cp(j,4)*pi*(r(j,4)^2-r(j,3)^2)/delta_t; % 计算第四层温度场大矩阵系数F
else % 中间网格系数的计算
A(j,2)=-2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j-1)+delta_z(j))*delta_z(j))-2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j-1)+delta_z(j))*delta_z(j-1))-2*pi*r(j,1)*h1(j,1)-2*pi*r(j,2)*h2(j,1)-Rho(j,2)*Cp(j,2)*pi*(r(j,2)^2-r(j,1)^2)/delta_t;
B(j,2)=2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j-1)+delta_z(j))*delta_z(j-1));
C(j,2)=2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j-1)+delta_z(j))*delta_z(j));
D(j,2)=2*pi*r(j,1)*h1(j,1);
E(j,2)=2*pi*r(j,2)*h2(j,1);
F(j,2)=-Rho(j,2)*Cp(j,2)*pi*(r(j,2)^2-r(j,1)^2)/delta_t;
A(j,3)=-Rho(j,3)*q*Cp(j,3)/delta_z(j)-2*pi*r(j,2)*h2(j,1)-2*pi*r(j,3)*h3(j,1)-Rho(j,3)*Cp(j,3)*pi*(r(j,3)^2-r(j,2)^2)/delta_t;
B(j,3)=0;
C(j,3)=Rho(j,3)*q*Cp(j,3)/delta_z(j);
D(j,3)=2*pi*r(j,2)*h2(j,1);
E(j,3)=2*pi*r(j,3)*h3(j,1);
F(j,3)=-Rho(j,3)*Cp(j,3)*pi*(r(j,3)^2-r(j,2)^2)/delta_t;
A(j,4)=-2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j-1)+delta_z(j))*delta_z(j))-2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j-1)+delta_z(j))*delta_z(j-1))-2*pi*r(j,3)*h3(j,1)-pi*(r(j,4)^2-r(j,3)^2)*log(r(j,5)/r(j,3))/(r(j,4)*(r(j,4)-r(j,3))*log(r(j,5)/r(j,4))*(log(r(j,4)/r(j,3))/lambda(j,4)+log(r(j,5)/r(j,4))/lambda(j,5)))-Rho(j,4)*Cp(j,4)*pi*(r(j,4)^2-r(j,3)^2)/delta_t;
B(j,4)=2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j-1)+delta_z(j))*delta_z(j-1));
C(j,4)=2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j-1)+delta_z(j))*delta_z(j));
D(j,4)=2*pi*r(j,3)*h3(j,1);
E(j,4)=pi*(r(j,4)^2-r(j,3)^2)*log(r(j,5)/r(j,3))/(r(j,4)*(r(j,4)-r(j,3))*log(r(j,5)/r(j,4))*(log(r(j,4)/r(j,3))/lambda(j,4)+log(r(j,5)/r(j,4))/lambda(j,5)));
F(j,4)=-Rho(j,4)*Cp(j,4)*pi*(r(j,4)^2-r(j,3)^2)/delta_t;
end
end
end
for i=5:nobox_r % 径向第5层及之后各层的系数计算
for j=1:nobox_z
if j==1 % 井口网格系数的计算
A(j,i)=-log(r(j,i)/r(j,i-2))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i)/r(j,i-1))*(log(r(j,i-1)/r(j,i-2))/lambda(j,i-1)+log(r(j,i)/r(j,i-1))/lambda(j,i)))-log(r(j,i+1)/r(j,i-1))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i+1)/r(j,i))*(log(r(j,i)/r(j,i-1))/lambda(j,i)+log(r(j,i+1)/r(j,i))/lambda(j,i+1)))-2*lambda(j,i)/((delta_z(j)+delta_z(j))*delta_z(j))-2*lambda(j,i)/((delta_z(j)+delta_z(j))*delta_z(j))-Rho(j,i)*Cp(j,i)/delta_t;
B(j,i)=2*lambda(j,i)/((delta_z(j)+delta_z(j))*delta_z(j));
C(j,i)=2*lambda(j,i)/((delta_z(j)+delta_z(j))*delta_z(j));
D(j,i)=log(r(j,i)/r(j,i-2))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i)/r(j,i-1))*(log(r(j,i-1)/r(j,i-2))/lambda(j,i-1)+log(r(j,i)/r(j,i-1))/lambda(j,i)));
E(j,i)=log(r(j,i+1)/r(j,i-1))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i+1)/r(j,i))*(log(r(j,i)/r(j,i-1))/lambda(j,i)+log(r(j,i+1)/r(j,i))/lambda(j,i+1)));
F(j,i)=-Rho(j,i)*Cp(j,i)/delta_t;
elseif j==nobox_z % 井底网格系数的计算
A(j,i)=-log(r(j,i)/r(j,i-2))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i)/r(j,i-1))*(log(r(j,i-1)/r(j,i-2))/lambda(j,i-1)+log(r(j,i)/r(j,i-1))/lambda(j,i)))-log(r(j,i+1)/r(j,i-1))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i+1)/r(j,i))*(log(r(j,i)/r(j,i-1))/lambda(j,i)+log(r(j,i+1)/r(j,i))/lambda(j,i+1)))-2*lambda(j,i)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1))-2*lambda(j,i)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1))-Rho(j,i)*Cp(j,i)/delta_t;
B(j,i)=2*lambda(j,i)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1));
C(j,i)=2*lambda(j,i)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1));
D(j,i)=log(r(j,i)/r(j,i-2))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i)/r(j,i-1))*(log(r(j,i-1)/r(j,i-2))/lambda(j,i-1)+log(r(j,i)/r(j,i-1))/lambda(j,i)));
E(j,i)=log(r(j,i+1)/r(j,i-1))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i+1)/r(j,i))*(log(r(j,i)/r(j,i-1))/lambda(j,i)+log(r(j,i+1)/r(j,i))/lambda(j,i+1)));
F(j,i)=-Rho(j,i)*Cp(j,i)/delta_t;
else % 中间网格系数的计算
A(j,i)=-log(r(j,i)/r(j,i-2))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i)/r(j,i-1))*(log(r(j,i-1)/r(j,i-2))/lambda(j,i-1)+log(r(j,i)/r(j,i-1))/lambda(j,i)))-log(r(j,i+1)/r(j,i-1))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i+1)/r(j,i))*(log(r(j,i)/r(j,i-1))/lambda(j,i)+log(r(j,i+1)/r(j,i))/lambda(j,i+1)))-2*lambda(j,i)/((delta_z(j-1)+delta_z(j))*delta_z(j))-2*lambda(j,i)/((delta_z(j-1)+delta_z(j))*delta_z(j-1))-Rho(j,i)*Cp(j,i)/delta_t;
B(j,i)=2*lambda(j,i)/((delta_z(j-1)+delta_z(j))*delta_z(j-1));
C(j,i)=2*lambda(j,i)/((delta_z(j-1)+delta_z(j))*delta_z(j));
D(j,i)=log(r(j,i)/r(j,i-2))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i)/r(j,i-1))*(log(r(j,i-1)/r(j,i-2))/lambda(j,i-1)+log(r(j,i)/r(j,i-1))/lambda(j,i)));
E(j,i)=log(r(j,i+1)/r(j,i-1))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i+1)/r(j,i))*(log(r(j,i)/r(j,i-1))/lambda(j,i)+log(r(j,i+1)/r(j,i))/lambda(j,i+1)));
F(j,i)=-Rho(j,i)*Cp(j,i)/delta_t;
end
end
end
A99=zeros(nobox_r*nobox_z,1); % 系数矩阵A存储在向量A99中
B99=zeros(nobox_r*nobox_z,1); % 系数矩阵B存储在向量B99中
C99=zeros(nobox_r*nobox_z,1); % 系数矩阵C存储在向量C99中
D99=zeros(nobox_r*nobox_z,1); % 系数矩阵D存储在向量D99中
E99=zeros(nobox_r*nobox_z,1); % 系数矩阵E存储在向量E99中
F99=zeros(nobox_r*nobox_z,1); % 系数矩阵F存储在向量F99中
% 系数矩阵A存储在向量A99中
A99(1:nobox_z)=A(:,1);
A99(nobox_z+1)=A(1,2)+B(1,2);
A99(nobox_z+2:2*nobox_z-1)=A(2:nobox_z-1,2);
A99(2*nobox_z)=A(nobox_z,2)+C(nobox_z,2);
A99(2*nobox_z+1:3*nobox_z-1)=A(1:nobox_z-1,3);
A99(3*nobox_z)=A(nobox_z,3)+C(nobox_z,3);
for i=4:nobox_r
A99((i-1)*nobox_z+1)=A(1,i)+B(1,i);
A99((i-1)*nobox_z+2:i*nobox_z-1)=A(2:nobox_z-1,i);
A99(i*nobox_z)=A(nobox_z,i)+C(nobox_z,i);
end
% 系数矩阵B、C、D、E、F存储在向量B99、C99、D99、E99、F99中
for i=1:nobox_r
B99((i-1)*nobox_z+1:i*nobox_z)=B(:,i);
C99((i-1)*nobox_z+1:i*nobox_z)=C(:,i);
D99((i-1)*nobox_z+1:i*nobox_z)=D(:,i);
E99((i-1)*nobox_z+1:i*nobox_z)=E(:,i);
F99((i-1)*nobox_z+1:i*nobox_z)=F(:,i);
end
%% 给温度场向量赋初值
X=zeros(nobox_r*nobox_z,1); % 温度场向量
% 钻杆内钻井液、钻杆壁、环空内钻井液温度
X(1)=Tm0; % 井口温度为钻井液注入温度
X(1+nobox_z)=Tm0; % 井口温度为钻井液注入温度
X(1+2*nobox_z)=Tm0; % 井口温度为钻井液注入温度
for j=2:nobox_z
X(j)=X(j-1)+delta_z(j-1)*Tfg; % 钻杆内钻井液温度以地温梯度增加
X(j+nobox_z)=X(j+nobox_z-1)+delta_z(j-1)*Tfg; % 钻杆壁温度以地温梯度增加
X(j+2*nobox_z)=X(j+2*nobox_z-1)+delta_z(j-1)*Tfg; % 环空内钻井液温度以地层梯度增加
end
for i=4:nobox_r % 第4层及之后各层温度初值
X((i-1)*nobox_z+1)=Tf0; % 井口温度为地表温度
for j=2:nobox_z
X((i-1)*nobox_z+j)=X((i-1)*nobox_z+j-1)+delta_z(j-1)*Tfg; % 温度以地温梯度增加
end
end
Tf=zeros(nobox_z,1); % 原始地层温度
Tf(1)=Tf0; % 井口温度为地表温度
for j=2:nobox_z
Tf(j)=Tf(j-1)+delta_z(j-1)*Tfg; % 温度以地温梯度增加
end
X0=zeros(nobox_r*nobox_z,1); % 存储每次计算的温度场，对比迭代温度场的差值
BC=zeros(nobox_r*nobox_z,1); % 温度控制方程的右端项向量
X1=zeros(nobox_r*nobox_z,timesteps); % 存储每一个时间步计算的温度场
% nt=1;
for nt=1:timesteps
%% 温度控制方程的右端项向量计算
BC(1)=-B99(1)*Tm0+F99(1)*X(1);
for i=2:(nobox_r-1)*nobox_z
BC(i)=F99(i)*X(i);
end
for i=(nobox_r-1)*nobox_z+1:nobox_r*nobox_z
BC(i)=F99(i)*X(i)-E99(i)*Tf(i-(nobox_r-1)*nobox_z);
end
max1=1; % 迭代误差初值，为了进入循环
err=0.001; % 迭代误差限
k=0; % 迭代步数计数器
while max1>err
k=k+1;
max1=0; % 进入循环后，max1赋值为0，这样后面得到的max1为迭代过程中得到的
X0=X; % 将X赋值给X0存储
%% 计算新的X
X(1)=(BC(1)-E99(1)*X(1+nobox_z))/A99(1);
for j=2:nobox_z
X(j)=(BC(j)-B99(j)*X(j-1)-E99(j)*X(j+nobox_z))/A99(j);
end
X(2*nobox_z)=X(nobox_z);
for j=2*nobox_z-1:-1:nobox_z+2
X(j)=(BC(j)-B99(j)*X(j-1)-C99(j)*X(j+1)-D99(j)*X(j-nobox_z)-E99(j)*X(j+nobox_z))/A99(j);
end
X(nobox_z+1)=(BC(nobox_z+1)-C99(nobox_z+1)*X(nobox_z+2)-D99(nobox_z+1)*X(1)-E99(nobox_z+1)*X(2*nobox_z+1))/A99(nobox_z+1);
X(3*nobox_z)=X(nobox_z);
for j=3*nobox_z-1:-1:2*nobox_z+1
X(j)=(BC(j)-C99(j)*X(j+1)-D99(j)*X(j-nobox_z)-E99(j)*X(j+nobox_z))/A99(j);
end
for i=4:nobox_r-1
X((i-1)*nobox_z+1)=(BC((i-1)*nobox_z+1)-C99((i-1)*nobox_z+1)*X((i-1)*nobox_z+2)-D99((i-1)*nobox_z+1)*X((i-2)*nobox_z+1)-E99((i-1)*nobox_z+1)*X(i*nobox_z+1))/A99((i-1)*nobox_z+1);
for j=(i-1)*nobox_z+2:i*nobox_z-1
X(j)=(BC(j)-B99(j)*X(j-1)-C99(j)*X(j+1)-D99(j)*X(j-nobox_z)-E99(j)*X(j+nobox_z))/A99(j);
end
X(i*nobox_z)=(BC(i*nobox_z)-B99(i*nobox_z)*X(i*nobox_z-1)-D99(i*nobox_z)*X((i-1)*nobox_z)-E99(i*nobox_z)*X((i+1)*nobox_z))/A99(i*nobox_z);
end
X((nobox_r-1)*nobox_z+1)=(BC((nobox_r-1)*nobox_z+1)-C99((nobox_r-1)*nobox_z+1)*X((nobox_r-1)*nobox_z+2)-D99((nobox_r-1)*nobox_z+1)*X((nobox_r-2)*nobox_z+1))/A99((nobox_r-1)*nobox_z+1);
for j=(nobox_r-1)*nobox_z+2:nobox_r*nobox_z-1
X(j)=(BC(j)-B99(j)*X(j-1)-C99(j)*X(j+1)-D99(j)*X(j-nobox_z))/A99(j);
end
X(nobox_r*nobox_z)=(BC(nobox_r*nobox_z)-B99(nobox_r*nobox_z)*X(nobox_r*nobox_z-1)-D99(nobox_r*nobox_z)*X((nobox_r-1)*nobox_z))/A99(nobox_r*nobox_z);
%% 对比新计算的X与迭代前的X之间的误差，并得到最大误差值
for i=1:nobox_r*nobox_z
m=abs(X0(i)-X(i));
if m>max1
max1=m;
end
end
end
X1(1:nobox_r*nobox_z,nt)=X(1:nobox_r*nobox_z); % 将当前时间步计算收敛得到的温度场赋值给X1
T_Drillpipe(1:nobox_z,nt)=X1(1:nobox_z,nt); % 从X1中提取出钻杆内钻井液温度
T_Annulus(1:nobox_z,nt)=X1(2*nobox_z+1:3*nobox_z,nt); % 从X1中提取出环空内钻井液温度
nt
end
else
for j=1:nobox_z
if Depth(j)<Depth_weiguan
Rho(j,4)=rou_m;
Cp(j,4)=Cpm;
lambda(j,4)=lambdam;
Rho(j,5)=rou_m;
Cp(j,5)=Cpm;
lambda(j,5)=lambdam;
else
Rho(j,4)=rou_s;
Cp(j,4)=Cps;
lambda(j,4)=lambdas;
Rho(j,5)=rou_c;
Cp(j,5)=Cpc;
lambda(j,5)=lambdac;
end
end
if casing_number==0
Rho(:,6:nobox_r)=rou_f;
Cp(:,6:nobox_r)=Cpf;
lambda(:,6:nobox_r)=lambdaf;
else
for i=1:casing_number
for j=1:nobox_z
if Depth(j)<Depth_casing(i)
Rho(j,5+2*i-1)=rou_s;
Cp(j,5+2*i-1)=Cps;
lambda(j,5+2*i-1)=lambdas;
elseif Depth(j)>=Depth_casing(i) & Depth(j)<=welldepth
Rho(j,5+2*i-1)=rou_f;
Cp(j,5+2*i-1)=Cpf;
lambda(j,5+2*i-1)=lambdaf;
end
if Depth(j)<Depth_fluid(i)
Rho(j,5+2*i)=rou_m;
Cp(j,5+2*i)=Cpm;
lambda(j,5+2*i)=lambdam;
elseif Depth(j)>=Depth_fluid(i) & Depth(j)<Depth_casing(i)
Rho(j,5+2*i)=rou_c;
Cp(j,5+2*i)=Cpc;
lambda(j,5+2*i)=lambdac;
elseif Depth(j)>=Depth_casing(i) & Depth(j)<=welldepth
Rho(j,5+2*i)=rou_f;
Cp(j,5+2*i)=Cpf;
lambda(j,5+2*i)=lambdaf;
end
end
end
for i=5+2*casing_number+1:nobox_r
for j=1:nobox_z
Rho(j,i)=rou_f;
Cp(j,i)=Cpf;
lambda(j,i)=lambdaf;
end
end
end
if Rheology_type==1
Re_drillpipe=Rho(:,1).*V_drillpipe.*(2*r(:,1))./miu_m; % 钻杆内雷诺数
h_drillpipe=0.027.*lambda(:,1).*Re_drillpipe.^0.8.*(miu_drillpipe.*Cp(:,1)./lambda(:,1)).^0.4./(2*r(:,1))/5; % 钻井液与钻杆内壁对流换热系数，W/(m^2·℃）
Re_annulus=zeros(nobox_z,1);
h_annulus=zeros(nobox_z,1);
for j=1:nobox_z
if Depth(j)<Depth_weiguan
Re_annulus(j)=Rho(j,3)*V_annulus(j)*(2*(r(j,5)-r(j,2)))/miu_m; % 环空内雷诺数
h_annulus(j)=0.027*lambda(j,3)*Re_annulus(j)^0.8*(miu_drillpipe(j)*Cp(j,3)/lambda(j,3))^0.4/(2*(r(j,5)-r(j,2)))/5; % 钻井液与钻杆外壁对流换热系数，W/(m^2·℃）
else
Re_annulus(j)=Rho(j,3)*V_annulus(j)*(2*(r(j,3)-r(j,2)))/miu_m; % 环空内雷诺数
h_annulus(j)=0.027*lambda(j,3)*Re_annulus(j)^0.8*(miu_drillpipe(j)*Cp(j,3)/lambda(j,3))^0.4/(2*(r(j,3)-r(j,2)))/5; % 钻井液与钻杆外壁对流换热系数，W/(m^2·℃）
end
end
elseif Rheology_type==2
Re_drillpipe=Rho(:,1).*V_drillpipe.^(2-n_power).*(2*r(:,1)).^n_power./(8^(n_power-1).*K_power.*((1+3*n_power)./(4*n_power)).^n_power); % 钻杆内雷诺数
delta_correct=(3*n_power+1)/(4*n_power);
h_drillpipe=0.091*Re_drillpipe.^0.87.*(miu_drillpipe.*Cp(:,1)./lambda(:,1)).^(1/3)*delta_correct./(2*r(:,1))/5;
Re_annulus=zeros(nobox_z,1);
h_annulus=zeros(nobox_z,1);
for j=1:nobox_z
if Depth(j)<Depth_weiguan
Re_annulus(j)=Rho(j,3)*V_annulus(j)^(2-n_power)*(2*(r(j,5)-r(j,2)))^n_power/(8^(n_power-1)*K_power*((1+3*n_power)/(4*n_power))^n_power); % 环空内雷诺数
h_annulus(j)=0.091*Re_annulus(j)^0.87*(miu_annulus(j)*Cp(j,3)./lambda(j,3))^(1/3)*delta_correct/(2*(r(j,5)-r(j,2)))/5;
else
Re_annulus(j)=Rho(j,3)*V_annulus(j)^(2-n_power)*(2*(r(j,3)-r(j,2)))^n_power/(8^(n_power-1)*K_power*((1+3*n_power)/(4*n_power))^n_power); % 环空内雷诺数
h_annulus(j)=0.091*Re_annulus(j)^0.87*(miu_annulus(j)*Cp(j,3)./lambda(j,3))^(1/3)*delta_correct/(2*(r(j,3)-r(j,2)))/5; % 钻井液与钻杆外壁对流换热系数，W/(m^2·℃）
end
end
elseif Rheology_type==3
Re_drillpipe=Rho(:,1).*V_drillpipe.*(2*r(:,1))./mu_p; % 钻杆内雷诺数
h_drillpipe=0.027.*lambda(:,1).*Re_drillpipe.^0.8.*(miu_drillpipe.*Cp(:,1)./lambda(:,1)).^0.4./(2*r(:,1))/5; % 钻井液与钻杆内壁对流换热系数，W/(m^2·℃）
Re_annulus=zeros(nobox_z,1);
h_annulus=zeros(nobox_z,1);
for j=1:nobox_z
if Depth(j)<Depth_weiguan
Re_annulus(j)=Rho(j,3)*V_annulus(j)*(2*(r(j,5)-r(j,2)))/mu_p; % 环空内雷诺数
h_annulus(j)=0.027*lambda(j,3)*Re_annulus(j)^0.8*(miu_drillpipe(j)*Cp(j,3)/lambda(j,3))^0.4/(2*(r(j,5)-r(j,2)))/5; % 钻井液与钻杆外壁对流换热系数，W/(m^2·℃）
else
Re_annulus(j)=Rho(j,3)*V_annulus(j)*(2*(r(j,3)-r(j,2)))/mu_p; % 环空内雷诺数
h_annulus(j)=0.027*lambda(j,3)*Re_annulus(j)^0.8*(miu_drillpipe(j)*Cp(j,3)/lambda(j,3))^0.4/(2*(r(j,3)-r(j,2)))/5; % 钻井液与钻杆外壁对流换热系数，W/(m^2·℃）
end
end
elseif Rheology_type==4
Re_drillpipe=Rho(:,1).*V_drillpipe.^(2-n_hb).*(2*r(:,1)).^n_hb./(8^(n_hb-1).*K_hb.*((1+3*n_hb)./(4*n_hb)).^n_hb); % 钻杆内雷诺数
delta_correct=(3*n_hb+1)/(4*n_hb);
h_drillpipe=0.091*Re_drillpipe.^0.87.*(miu_drillpipe.*Cp(:,1)./lambda(:,1)).^(1/3)*delta_correct./(2*r(:,1))/5;
Re_annulus=zeros(nobox_z,1);
h_annulus=zeros(nobox_z,1);
for j=1:nobox_z
if Depth(j)<Depth_weiguan
Re_annulus(j)=Rho(j,3)*V_annulus(j)^(2-n_hb)*(2*(r(j,5)-r(j,2)))^n_hb/(8^(n_hb-1)*K_hb*((1+3*n_hb)/(4*n_hb))^n_hb); % 环空内雷诺数
h_annulus(j)=0.091*Re_annulus(j)^0.87*(miu_annulus(j)*Cp(j,3)./lambda(j,3))^(1/3)*delta_correct/(2*(r(j,5)-r(j,2)))/5;
else
Re_annulus(j)=Rho(j,3)*V_annulus(j)^(2-n_hb)*(2*(r(j,3)-r(j,2)))^n_hb/(8^(n_hb-1)*K_hb*((1+3*n_hb)/(4*n_hb))^n_hb); % 环空内雷诺数
h_annulus(j)=0.091*Re_annulus(j)^0.87*(miu_annulus(j)*Cp(j,3)./lambda(j,3))^(1/3)*delta_correct/(2*(r(j,3)-r(j,2)))/5; % 钻井液与钻杆外壁对流换热系数，W/(m^2·℃）
end
end
end
h1=h_drillpipe; % 钻井液与钻杆内壁对流换热系数，W/(m^2·℃）
h2=h_annulus; % 钻井液与钻杆外壁对流换热系数，W/(m^2·℃）
h3=h_annulus; % 钻井液与井筒内壁对流换热系数，W/(m^2·℃）
%% 系数矩阵计算
A=zeros(nobox_z,nobox_r); % 系数矩阵A
B=zeros(nobox_z,nobox_r); % 系数矩阵B
C=zeros(nobox_z,nobox_r); % 系数矩阵C
D=zeros(nobox_z,nobox_r); % 系数矩阵D
E=zeros(nobox_z,nobox_r); % 系数矩阵E
F=zeros(nobox_z,nobox_r); % 系数矩阵F
for j=1:nobox_z
if j==1 % 井口网格系数的计算
A(j,1)=-Rho(j,1)*q*Cp(j,1)/delta_z(j)-2*pi*r(j,1)*h1(j,1)-Rho(j,1)*Cp(j,1)*pi*r(j,1)^2/delta_t;
B(j,1)=Rho(j,1)*q*Cp(j,1)/delta_z(j);
C(j,1)=0;
D(j,1)=0;
E(j,1)=2*pi*r(j,1)*h1(j,1);
F(j,1)=-Rho(j,1)*Cp(j,1)*pi*r(j,1)^2/delta_t;
A(j,2)=-2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j)+delta_z(j))*delta_z(j))-2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j)+delta_z(j))*delta_z(j))-2*pi*r(j,1)*h1(j,1)-2*pi*r(j,2)*h2(j,1)-Rho(j,2)*Cp(j,2)*pi*(r(j,2)^2-r(j,1)^2)/delta_t;
B(j,2)=2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j)+delta_z(j))*delta_z(j));
C(j,2)=2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j)+delta_z(j))*delta_z(j));
D(j,2)=2*pi*r(j,1)*h1(j,1);
E(j,2)=2*pi*r(j,2)*h2(j,1);
F(j,2)=-Rho(j,2)*Cp(j,2)*pi*(r(j,2)^2-r(j,1)^2)/delta_t;
A(j,3)=-Rho(j,3)*q*Cp(j,3)/delta_z(j)-2*pi*r(j,2)*h2(j,1)-2*pi*r(j,3)*h3(j,1)-Rho(j,3)*Cp(j,3)*pi*(r(j,3)^2-r(j,2)^2)/delta_t;
B(j,3)=0;
C(j,3)=Rho(j,3)*q*Cp(j,3)/delta_z(j);
D(j,3)=2*pi*r(j,2)*h2(j,1);
E(j,3)=2*pi*r(j,3)*h3(j,1);
F(j,3)=-Rho(j,3)*Cp(j,3)*pi*(r(j,3)^2-r(j,2)^2)/delta_t;
A(j,4)=-2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j)+delta_z(j))*delta_z(j))-2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j)+delta_z(j))*delta_z(j))-2*pi*r(j,3)*h3(j,1)-pi*(r(j,4)^2-r(j,3)^2)*log(r(j,5)/r(j,3))/(r(j,4)*(r(j,4)-r(j,3))*log(r(j,5)/r(j,4))*(log(r(j,4)/r(j,3))/lambda(j,4)+log(r(j,5)/r(j,4))/lambda(j,5)))-Rho(j,4)*Cp(j,4)*pi*(r(j,4)^2-r(j,3)^2)/delta_t;
B(j,4)=2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j)+delta_z(j))*delta_z(j));
C(j,4)=2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j)+delta_z(j))*delta_z(j));
D(j,4)=2*pi*r(j,3)*h3(j,1);
E(j,4)=pi*(r(j,4)^2-r(j,3)^2)*log(r(j,5)/r(j,3))/(r(j,4)*(r(j,4)-r(j,3))*log(r(j,5)/r(j,4))*(log(r(j,4)/r(j,3))/lambda(j,4)+log(r(j,5)/r(j,4))/lambda(j,5)));
F(j,4)=-Rho(j,4)*Cp(j,4)*pi*(r(j,4)^2-r(j,3)^2)/delta_t;
else
A(j,1)=-Rho(j,1)*q*Cp(j,1)/delta_z(j-1)-2*pi*r(j,1)*h1(j,1)-Rho(j,1)*Cp(j,1)*pi*r(j,1)^2/delta_t;
B(j,1)=Rho(j,1)*q*Cp(j,1)/delta_z(j-1);
C(j,1)=0;
D(j,1)=0;
E(j,1)=2*pi*r(j,1)*h1(j,1);
F(j,1)=-Rho(j,1)*Cp(j,1)*pi*r(j,1)^2/delta_t;
if j==nobox_z % 井底网格系数的计算
A(j,2)=-2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1))-2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1))-2*pi*r(j,1)*h1(j,1)-2*pi*r(j,2)*h2(j,1)-Rho(j,2)*Cp(j,2)*pi*(r(j,2)^2-r(j,1)^2)/delta_t;
B(j,2)=2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1));
C(j,2)=2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1));
D(j,2)=2*pi*r(j,1)*h1(j,1);
E(j,2)=2*pi*r(j,2)*h2(j,1);
F(j,2)=-Rho(j,2)*Cp(j,2)*pi*(r(j,2)^2-r(j,1)^2)/delta_t;
A(j,3)=-Rho(j,3)*q*Cp(j,3)/delta_z(j-1)-2*pi*r(j,2)*h2(j,1)-2*pi*r(j,3)*h3(j,1)-Rho(j,3)*Cp(j,3)*pi*(r(j,3)^2-r(j,2)^2)/delta_t;
B(j,3)=0;
C(j,3)=Rho(j,3)*q*Cp(j,3)/delta_z(j-1);
D(j,3)=2*pi*r(j,2)*h2(j,1);
E(j,3)=2*pi*r(j,3)*h3(j,1);
F(j,3)=-Rho(j,3)*Cp(j,3)*pi*(r(j,3)^2-r(j,2)^2)/delta_t;
A(j,4)=-2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1))-2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1))-2*pi*r(j,3)*h3(j,1)-pi*(r(j,4)^2-r(j,3)^2)*log(r(j,5)/r(j,3))/(r(j,4)*(r(j,4)-r(j,3))*log(r(j,5)/r(j,4))*(log(r(j,4)/r(j,3))/lambda(j,4)+log(r(j,5)/r(j,4))/lambda(j,5)))-Rho(j,4)*Cp(j,4)*pi*(r(j,4)^2-r(j,3)^2)/delta_t;
B(j,4)=2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1));
C(j,4)=2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1));
D(j,4)=2*pi*r(j,3)*h3(j,1);
E(j,4)=pi*(r(j,4)^2-r(j,3)^2)*log(r(j,5)/r(j,3))/(r(j,4)*(r(j,4)-r(j,3))*log(r(j,5)/r(j,4))*(log(r(j,4)/r(j,3))/lambda(j,4)+log(r(j,5)/r(j,4))/lambda(j,5)));
F(j,4)=-Rho(j,4)*Cp(j,4)*pi*(r(j,4)^2-r(j,3)^2)/delta_t;
else % 中间网格系数的计算
A(j,2)=-2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j-1)+delta_z(j))*delta_z(j))-2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j-1)+delta_z(j))*delta_z(j-1))-2*pi*r(j,1)*h1(j,1)-2*pi*r(j,2)*h2(j,1)-Rho(j,2)*Cp(j,2)*pi*(r(j,2)^2-r(j,1)^2)/delta_t;
B(j,2)=2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j-1)+delta_z(j))*delta_z(j-1));
C(j,2)=2*lambda(j,2)*pi*(r(j,2)^2-r(j,1)^2)/((delta_z(j-1)+delta_z(j))*delta_z(j));
D(j,2)=2*pi*r(j,1)*h1(j,1);
E(j,2)=2*pi*r(j,2)*h2(j,1);
F(j,2)=-Rho(j,2)*Cp(j,2)*pi*(r(j,2)^2-r(j,1)^2)/delta_t;
A(j,3)=-Rho(j,3)*q*Cp(j,3)/delta_z(j)-2*pi*r(j,2)*h2(j,1)-2*pi*r(j,3)*h3(j,1)-Rho(j,3)*Cp(j,3)*pi*(r(j,3)^2-r(j,2)^2)/delta_t;
B(j,3)=0;
C(j,3)=Rho(j,3)*q*Cp(j,3)/delta_z(j);
D(j,3)=2*pi*r(j,2)*h2(j,1);
E(j,3)=2*pi*r(j,3)*h3(j,1);
F(j,3)=-Rho(j,3)*Cp(j,3)*pi*(r(j,3)^2-r(j,2)^2)/delta_t;
A(j,4)=-2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j-1)+delta_z(j))*delta_z(j))-2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j-1)+delta_z(j))*delta_z(j-1))-2*pi*r(j,3)*h3(j,1)-pi*(r(j,4)^2-r(j,3)^2)*log(r(j,5)/r(j,3))/(r(j,4)*(r(j,4)-r(j,3))*log(r(j,5)/r(j,4))*(log(r(j,4)/r(j,3))/lambda(j,4)+log(r(j,5)/r(j,4))/lambda(j,5)))-Rho(j,4)*Cp(j,4)*pi*(r(j,4)^2-r(j,3)^2)/delta_t;
B(j,4)=2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j-1)+delta_z(j))*delta_z(j-1));
C(j,4)=2*lambda(j,4)*pi*(r(j,4)^2-r(j,3)^2)/((delta_z(j-1)+delta_z(j))*delta_z(j));
D(j,4)=2*pi*r(j,3)*h3(j,1);
E(j,4)=pi*(r(j,4)^2-r(j,3)^2)*log(r(j,5)/r(j,3))/(r(j,4)*(r(j,4)-r(j,3))*log(r(j,5)/r(j,4))*(log(r(j,4)/r(j,3))/lambda(j,4)+log(r(j,5)/r(j,4))/lambda(j,5)));
F(j,4)=-Rho(j,4)*Cp(j,4)*pi*(r(j,4)^2-r(j,3)^2)/delta_t;
end
end
end
for i=5:nobox_r % 径向第5层及之后各层的系数计算
for j=1:nobox_z
if j==1 % 井口网格系数的计算
A(j,i)=-log(r(j,i)/r(j,i-2))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i)/r(j,i-1))*(log(r(j,i-1)/r(j,i-2))/lambda(j,i-1)+log(r(j,i)/r(j,i-1))/lambda(j,i)))-log(r(j,i+1)/r(j,i-1))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i+1)/r(j,i))*(log(r(j,i)/r(j,i-1))/lambda(j,i)+log(r(j,i+1)/r(j,i))/lambda(j,i+1)))-2*lambda(j,i)/((delta_z(j)+delta_z(j))*delta_z(j))-2*lambda(j,i)/((delta_z(j)+delta_z(j))*delta_z(j))-Rho(j,i)*Cp(j,i)/delta_t;
B(j,i)=2*lambda(j,i)/((delta_z(j)+delta_z(j))*delta_z(j));
C(j,i)=2*lambda(j,i)/((delta_z(j)+delta_z(j))*delta_z(j));
D(j,i)=log(r(j,i)/r(j,i-2))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i)/r(j,i-1))*(log(r(j,i-1)/r(j,i-2))/lambda(j,i-1)+log(r(j,i)/r(j,i-1))/lambda(j,i)));
E(j,i)=log(r(j,i+1)/r(j,i-1))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i+1)/r(j,i))*(log(r(j,i)/r(j,i-1))/lambda(j,i)+log(r(j,i+1)/r(j,i))/lambda(j,i+1)));
F(j,i)=-Rho(j,i)*Cp(j,i)/delta_t;
elseif j==nobox_z % 井底网格系数的计算
A(j,i)=-log(r(j,i)/r(j,i-2))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i)/r(j,i-1))*(log(r(j,i-1)/r(j,i-2))/lambda(j,i-1)+log(r(j,i)/r(j,i-1))/lambda(j,i)))-log(r(j,i+1)/r(j,i-1))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i+1)/r(j,i))*(log(r(j,i)/r(j,i-1))/lambda(j,i)+log(r(j,i+1)/r(j,i))/lambda(j,i+1)))-2*lambda(j,i)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1))-2*lambda(j,i)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1))-Rho(j,i)*Cp(j,i)/delta_t;
B(j,i)=2*lambda(j,i)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1));
C(j,i)=2*lambda(j,i)/((delta_z(j-1)+delta_z(j-1))*delta_z(j-1));
D(j,i)=log(r(j,i)/r(j,i-2))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i)/r(j,i-1))*(log(r(j,i-1)/r(j,i-2))/lambda(j,i-1)+log(r(j,i)/r(j,i-1))/lambda(j,i)));
E(j,i)=log(r(j,i+1)/r(j,i-1))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i+1)/r(j,i))*(log(r(j,i)/r(j,i-1))/lambda(j,i)+log(r(j,i+1)/r(j,i))/lambda(j,i+1)));
F(j,i)=-Rho(j,i)*Cp(j,i)/delta_t;
else % 中间网格系数的计算
A(j,i)=-log(r(j,i)/r(j,i-2))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i)/r(j,i-1))*(log(r(j,i-1)/r(j,i-2))/lambda(j,i-1)+log(r(j,i)/r(j,i-1))/lambda(j,i)))-log(r(j,i+1)/r(j,i-1))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i+1)/r(j,i))*(log(r(j,i)/r(j,i-1))/lambda(j,i)+log(r(j,i+1)/r(j,i))/lambda(j,i+1)))-2*lambda(j,i)/((delta_z(j-1)+delta_z(j))*delta_z(j))-2*lambda(j,i)/((delta_z(j-1)+delta_z(j))*delta_z(j-1))-Rho(j,i)*Cp(j,i)/delta_t;
B(j,i)=2*lambda(j,i)/((delta_z(j-1)+delta_z(j))*delta_z(j-1));
C(j,i)=2*lambda(j,i)/((delta_z(j-1)+delta_z(j))*delta_z(j));
D(j,i)=log(r(j,i)/r(j,i-2))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i)/r(j,i-1))*(log(r(j,i-1)/r(j,i-2))/lambda(j,i-1)+log(r(j,i)/r(j,i-1))/lambda(j,i)));
E(j,i)=log(r(j,i+1)/r(j,i-1))/(r(j,i)*(r(j,i)-r(j,i-1))*log(r(j,i+1)/r(j,i))*(log(r(j,i)/r(j,i-1))/lambda(j,i)+log(r(j,i+1)/r(j,i))/lambda(j,i+1)));
F(j,i)=-Rho(j,i)*Cp(j,i)/delta_t;
end
end
end
A99=zeros(nobox_r*nobox_z,1); % 系数矩阵A存储在向量A99中
B99=zeros(nobox_r*nobox_z,1); % 系数矩阵B存储在向量B99中
C99=zeros(nobox_r*nobox_z,1); % 系数矩阵C存储在向量C99中
D99=zeros(nobox_r*nobox_z,1); % 系数矩阵D存储在向量D99中
E99=zeros(nobox_r*nobox_z,1); % 系数矩阵E存储在向量E99中
F99=zeros(nobox_r*nobox_z,1); % 系数矩阵F存储在向量F99中
% 系数矩阵A存储在向量A99中
A99(1:nobox_z)=A(:,1);
A99(nobox_z+1)=A(1,2)+B(1,2);
A99(nobox_z+2:2*nobox_z-1)=A(2:nobox_z-1,2);
A99(2*nobox_z)=A(nobox_z,2)+C(nobox_z,2);
A99(2*nobox_z+1:3*nobox_z-1)=A(1:nobox_z-1,3);
A99(3*nobox_z)=A(nobox_z,3)+C(nobox_z,3);
for i=4:nobox_r
A99((i-1)*nobox_z+1)=A(1,i)+B(1,i);
A99((i-1)*nobox_z+2:i*nobox_z-1)=A(2:nobox_z-1,i);
A99(i*nobox_z)=A(nobox_z,i)+C(nobox_z,i);
end
% 系数矩阵B、C、D、E、F存储在向量B99、C99、D99、E99、F99中
for i=1:nobox_r
B99((i-1)*nobox_z+1:i*nobox_z)=B(:,i);
C99((i-1)*nobox_z+1:i*nobox_z)=C(:,i);
D99((i-1)*nobox_z+1:i*nobox_z)=D(:,i);
E99((i-1)*nobox_z+1:i*nobox_z)=E(:,i);
F99((i-1)*nobox_z+1:i*nobox_z)=F(:,i);
end
%% 给温度场向量赋初值
X=zeros(nobox_r*nobox_z,1); % 温度场向量
% 钻杆内钻井液、钻杆壁、环空内钻井液温度
X(1)=Tm0; % 井口温度为钻井液注入温度
X(1+nobox_z)=Tm0; % 井口温度为钻井液注入温度
X(1+2*nobox_z)=Tm0; % 井口温度为钻井液注入温度
for j=2:nobox_z
X(j)=X(j-1)+delta_z(j-1)*Tfg; % 钻杆内钻井液温度以地温梯度增加
X(j+nobox_z)=X(j+nobox_z-1)+delta_z(j-1)*Tfg; % 钻杆壁温度以地温梯度增加
X(j+2*nobox_z)=X(j+2*nobox_z-1)+delta_z(j-1)*Tfg; % 环空内钻井液温度以地层梯度增加
end
for i=4:nobox_r % 第4层及之后各层温度初值
X((i-1)*nobox_z+1)=Tf0; % 井口温度为地表温度
for j=2:nobox_z
X((i-1)*nobox_z+j)=X((i-1)*nobox_z+j-1)+delta_z(j-1)*Tfg; % 温度以地温梯度增加
end
end
Tf=zeros(nobox_z,1); % 原始地层温度
Tf(1)=Tf0; % 井口温度为地表温度
for j=2:nobox_z
Tf(j)=Tf(j-1)+delta_z(j-1)*Tfg; % 温度以地温梯度增加
end
X0=zeros(nobox_r*nobox_z,1); % 存储每次计算的温度场，对比迭代温度场的差值
BC=zeros(nobox_r*nobox_z,1); % 温度控制方程的右端项向量
X1=zeros(nobox_r*nobox_z,timesteps); % 存储每一个时间步计算的温度场
for nt=1:timesteps
%% 温度控制方程的右端项向量计算
BC(1)=-B99(1)*Tm0+F99(1)*X(1);
for i=2:(nobox_r-1)*nobox_z
BC(i)=F99(i)*X(i);
end
for i=(nobox_r-1)*nobox_z+1:nobox_r*nobox_z
BC(i)=F99(i)*X(i)-E99(i)*Tf(i-(nobox_r-1)*nobox_z);
end
max1=1; % 迭代误差初值，为了进入循环
err=0.001; % 迭代误差限
k=0; % 迭代步数计数器
while max1>err
k=k+1;
max1=0; % 进入循环后，max1赋值为0，这样后面得到的max1为迭代过程中得到的
X0=X; % 将X赋值给X0存储
%% 计算新的X
X(1)=(BC(1)-E99(1)*X(1+nobox_z))/A99(1);
for j=2:nobox_z
X(j)=(BC(j)-B99(j)*X(j-1)-E99(j)*X(j+nobox_z))/A99(j);
end
X(2*nobox_z)=X(nobox_z);
for j=2*nobox_z-1:-1:nobox_z+2
X(j)=(BC(j)-B99(j)*X(j-1)-C99(j)*X(j+1)-D99(j)*X(j-nobox_z)-E99(j)*X(j+nobox_z))/A99(j);
end
X(nobox_z+1)=(BC(nobox_z+1)-C99(nobox_z+1)*X(nobox_z+2)-D99(nobox_z+1)*X(1)-E99(nobox_z+1)*X(2*nobox_z+1))/A99(nobox_z+1);
X(3*nobox_z)=X(nobox_z);
for j=3*nobox_z-1:-1:2*nobox_z+1
X(j)=(BC(j)-C99(j)*X(j+1)-D99(j)*X(j-nobox_z)-E99(j)*X(j+nobox_z))/A99(j);
end
X(3*nobox_z+1:3*nobox_z+Weiguan_i)=X(2*nobox_z+1:2*nobox_z+Weiguan_i);
for j=Weiguan_i+1:nobox_z-1
X(3*nobox_z+j)=(BC(3*nobox_z+j)-B99(3*nobox_z+j)*X(3*nobox_z+j-1)-C99(3*nobox_z+j)*X(3*nobox_z+j+1)-D99(3*nobox_z+j)*X(2*nobox_z+j)-E99(3*nobox_z+j)*X(4*nobox_z+j))/A99(3*nobox_z+j);
end
X(4*nobox_z)=(BC(4*nobox_z)-B99(4*nobox_z)*X(4*nobox_z-1)-D99(4*nobox_z)*X(3*nobox_z)-E99(4*nobox_z)*X(5*nobox_z))/A99(4*nobox_z);
X(4*nobox_z+1:4*nobox_z+Weiguan_i)=X(2*nobox_z+1:2*nobox_z+Weiguan_i);
X(4*nobox_z+1:4*nobox_z+Weiguan_i)=X(2*nobox_z+1:2*nobox_z+Weiguan_i);
for j=Weiguan_i+1:nobox_z-1
X(4*nobox_z+j)=(BC(4*nobox_z+j)-B99(4*nobox_z+j)*X(4*nobox_z+j-1)-C99(4*nobox_z+j)*X(4*nobox_z+j+1)-D99(4*nobox_z+j)*X(3*nobox_z+j)-E99(4*nobox_z+j)*X(5*nobox_z+j))/A99(4*nobox_z+j);
end
X(5*nobox_z)=(BC(5*nobox_z)-B99(5*nobox_z)*X(5*nobox_z-1)-D99(5*nobox_z)*X(4*nobox_z)-E99(5*nobox_z)*X(6*nobox_z))/A99(5*nobox_z);
for i=6:nobox_r-1
X((i-1)*nobox_z+1)=(BC((i-1)*nobox_z+1)-C99((i-1)*nobox_z+1)*X((i-1)*nobox_z+2)-D99((i-1)*nobox_z+1)*X((i-2)*nobox_z+1)-E99((i-1)*nobox_z+1)*X(i*nobox_z+1))/A99((i-1)*nobox_z+1);
for j=(i-1)*nobox_z+2:i*nobox_z-1
X(j)=(BC(j)-B99(j)*X(j-1)-C99(j)*X(j+1)-D99(j)*X(j-nobox_z)-E99(j)*X(j+nobox_z))/A99(j);
end
X(i*nobox_z)=(BC(i*nobox_z)-B99(i*nobox_z)*X(i*nobox_z-1)-D99(i*nobox_z)*X((i-1)*nobox_z)-E99(i*nobox_z)*X((i+1)*nobox_z))/A99(i*nobox_z);
end
X((nobox_r-1)*nobox_z+1)=(BC((nobox_r-1)*nobox_z+1)-C99((nobox_r-1)*nobox_z+1)*X((nobox_r-1)*nobox_z+2)-D99((nobox_r-1)*nobox_z+1)*X((nobox_r-2)*nobox_z+1))/A99((nobox_r-1)*nobox_z+1);
for j=(nobox_r-1)*nobox_z+2:nobox_r*nobox_z-1
X(j)=(BC(j)-B99(j)*X(j-1)-C99(j)*X(j+1)-D99(j)*X(j-nobox_z))/A99(j);
end
X(nobox_r*nobox_z)=(BC(nobox_r*nobox_z)-B99(nobox_r*nobox_z)*X(nobox_r*nobox_z-1)-D99(nobox_r*nobox_z)*X((nobox_r-1)*nobox_z))/A99(nobox_r*nobox_z);
%% 对比新计算的X与迭代前的X之间的误差，并得到最大误差值
for i=1:nobox_r*nobox_z
m=abs(X0(i)-X(i));
if m>max1
max1=m;
end
end
end
X1(1:nobox_r*nobox_z,nt)=X(1:nobox_r*nobox_z); % 将当前时间步计算收敛得到的温度场赋值给X1
T_Drillpipe(1:nobox_z,nt)=X1(1:nobox_z,nt); % 从X1中提取出钻杆内钻井液温度
T_Annulus(1:nobox_z,nt)=X1(2*nobox_z+1:3*nobox_z,nt); % 从X1中提取出环空内钻井液温度
nt
end
end

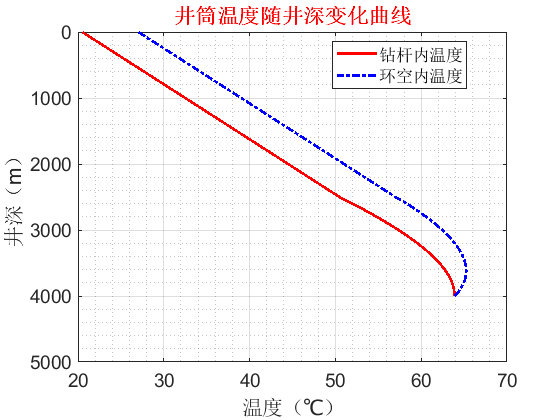

%% 绘制井筒温度随井深变化曲线
h=figure(1);
plot(T_Drillpipe(:,timesteps),Depth,'r-','LineWidth',2); % 绘制钻杆内钻井液温度随井深变化
hold on
plot(T_Annulus(:,timesteps),Depth,'b-.','LineWidth',2); % 绘制环空内钻井液温度随井深变化
hold off
set(gca,'YDir','reverse') % Y轴井深逆序
title('井筒温度随井深变化曲线','FontWeight','Bold','Color','r'); % 曲线标题
xlabel('温度（℃）')
ylabel('井深（m）')
legend('钻杆内温度','环空内温度','Location','Best') % 设置图例及位置
set(gca,'FontSize',14);
grid on % 显示坐标轴的主网格线
grid minor % 显示坐标轴的次网格线
T_Drillpipe(nobox_z,timesteps)
T_Annulus(1,timesteps)
toc;
